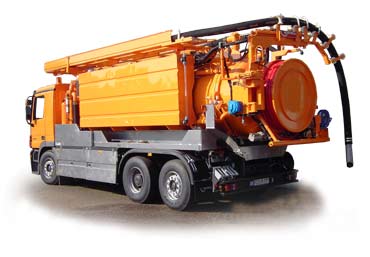

HIGH PRESSURE RINSING & SUCTION VEHICLES

with continuous water treatment
with pneumatic piston discharge
with water bag calming zones

Areas of application
■ Pipe cleaning, hydrodynamic
■ Sewer cleaning, hydrodynamic
■ Sewer cleaning (continuous) with water treatment (recycling)
■ Surface cleaning
■ Cleaning insides of tanks
■ Industrial cleaning

Features
■ Discharge by free flow
■ Discharge by pressurisation of vacuum pump
■ Discharge by pneumatic discharge piston (expulsion piston)
■ Multiple compartment system (optional)
■ Combined operation of suction and high-pressure rinsing
■ fixed and variable water compartments

Tanks
■ Sludge compartment size: according to customer request
■ up to 20000 litre air volume
■ Sludge compartment format: cylindrical
■ Material: Steel or stainless steel
■ With fully opening closure hatch
■ Water compartment prefabricated in tank, in piston entrance and as water bags on the side
■ Contents level display via inspection glass or floating display with scale

Closure hatch
■ can be opened over the whole cross-section,
■ Torispherical head
■ Material: Steel or stainless steel
■ opens hydraulically upwards
■ Central locking closure hatch can be operated pneumatically, hydraulically or by hand

Vacuum pump
■ Vacuum pump make according to customer demand (e.g.: CVS, Gardner-Denver-Wittig, SIHI, Jurop, Samson etc.)
■ Quantity: 1 or 2 pieces
■ Suction capacity: up to 4000 m3/h
■ Mechanical or hydraulic power from auxiliary drive of the chassis or via separate engine
■ Optionally with: Suction hose reel, boom, cassette or cassette boom

Vacuum system
■ Suction hose cartridge or
■ Suction hose reel or
■ Telescopic boom or
■ Suction hose cartridge with telescopic boom or
■ Suction hose cartridge with swivel head boom or
■ Simultaneous boom

High pressure pump
■ High pressure pump, make according to customer demand (URACA, Hammelmann, Speck, Woma, KAMAT, Pratissoli etc.)
■ Quantity: 1 or 2 pieces
■ Rinse capacity: up to 600 litres/minute at up to 400 bar
■ pneumatic pressure regulating valve,
■ Pressure speed control
■ Power from auxiliary drive of the chassis or via separate engine

High pressure system
■ Large high pressure rinsing reel with continuous hydraulic power in both directions;
■ Large high pressure rinsing reel fixed or swivelling built on closure base or on trailer, partially telescopic
■ Large high pressure rinsing reel designed for DN 19, DN 25, DN 32, DN 38 HP hose, up to 360 m, in special models also up to 500 m
■ Small high pressure rinsing reel operated hydraulically or by hand, designed for 40 to 120 m DN 13 HP hose

Water treatment
■ continuous automatically working waste water treatment
■ thereby continuous suction-rinsing operation on-site
■ no need for trips to freshwater tanks
■ 8-stage water treatment system via displacement, coarse filter, pre-filter, waste water pump, cyclones, cascade, settling tanks etc.

Control
■ Logo control
■ CAN-BUS control
■ Pressure speed regulation
■ Radio remote control,
■ Central operating controls in stainless steel housing

Equipment
■ Discharge apron made from aluminium or stainless steel
■ Toolboxes or hose boxes on left and right side, made from aluminium or sheets of stainless steel
■ Additional toolbox
■ High pressure/sewer rinsing hoses
■ Water level warning system,
■ Residual water emptying system
■ Vice
■ Spraying gun/wash lance
■ Halogen working lights
■ etc.

Options
■ Air compressor,
■ Hydraulic winch
■ Reversing camera system
■ Metering system
■ Heated wardrobe
■ Full cladding
■ Hand washing system with cold water or cold/warm water
■ Billboards
■ Odour neutralisation system
■ Deep suction facilities
■ Winter heating
■ Anti aerosol
■ Nozzle set
■ etc.
