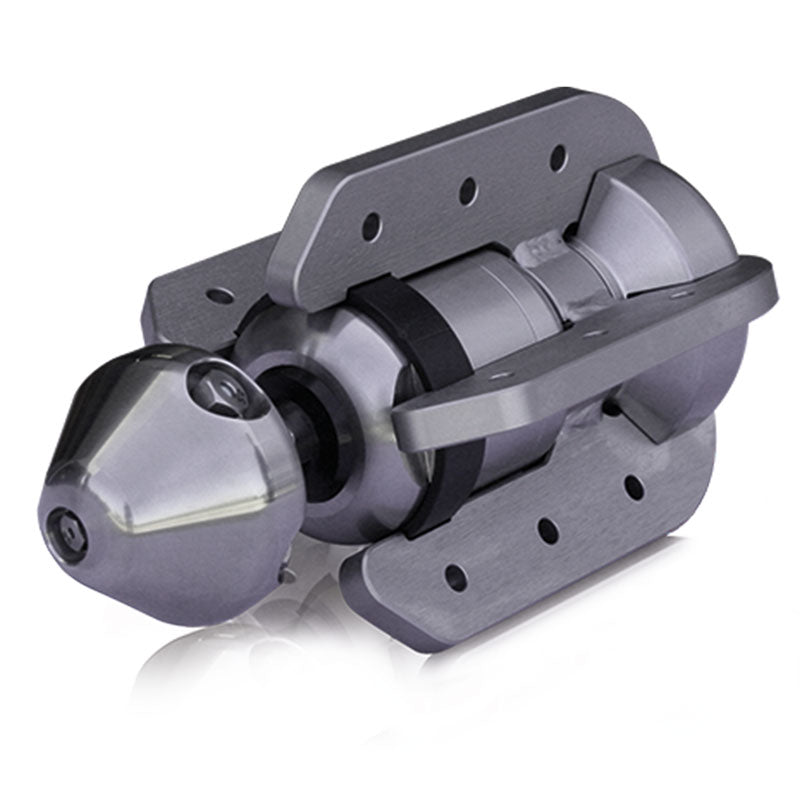

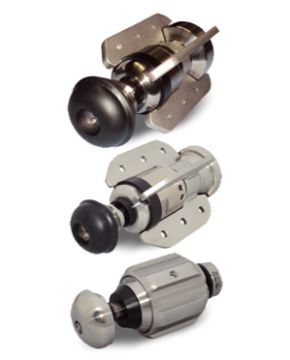

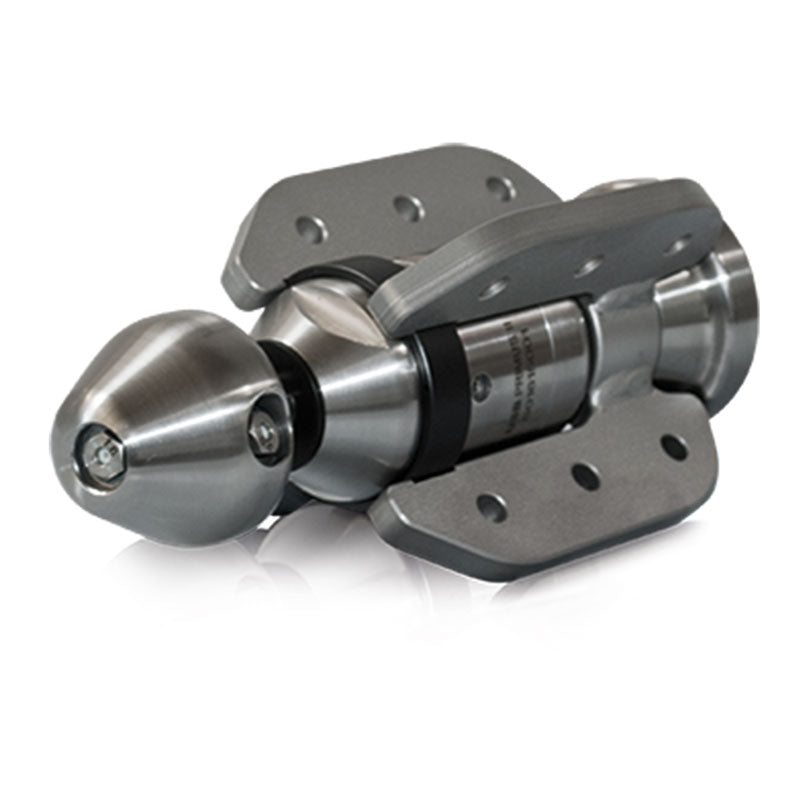

Primus Nozzle™ – 3D

The Primus™ is a sewer cleaning nozzle with controlled rotation speed. Our Primus™ is operated by water coming from a pressurized hose. The controlled rotation occurs because the angle of jet incidence in the cleaning head works in conjunction with internal high performance ceramic clutch discs.

Advantages:
• No lubrication or replacement of internal mechanical parts within the first 12 months of operation, thus making this nozzle extremely user friendly
• Can be used in combination with a continuously adjustable flexible guide skid to center in the pipe
• Capable of being used with recycled water
• Reduced water consumption
• Reduced operating costs

Applications:
Grease, scale, crusts and roots

Technical Specs:
• Advanced Optimized 3D Hydro Mechanics™
• Replaceable threaded ceramic nozzle inserts in the head
• Replaceable threaded steel inserts in the rear
• Stainless steel body construction
• Stainless steel skid construction
• Rear angle of jet incidence is 15°
• Rear of the head jet incidence is 45°
• Forward jet incidence is 18°
• 1/2″ – 1 1/4″ hose connection
• Min. 14gpm @ 1/2″ – Max. 120gpm @ 1 1/4″

Our customers productivity is our main priority, can we help you?
