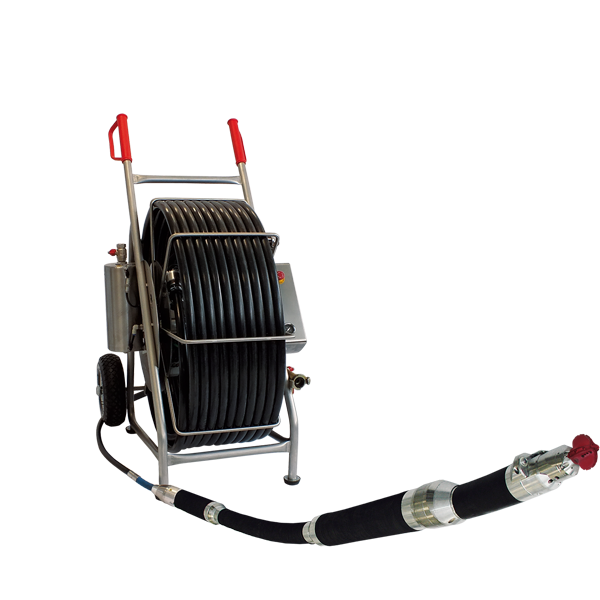

Micro Automatic Plus

Micro Automatic Plus Image
  • large range of application in pipes from DN 80 up to 150/3 up to 6“ (inside diameter), optional up to DN 250/10“
  • excellent flexibility in bends up to 90° in DN 100/4“ through rotating and swivel head
  • high work efficiency due to axial feed of approx. 100 mm/4“
  • usable also in difficult pipe situations due to manual and automatic creeping and climbing function
  • pneumatic clamping unit permits usage also in vertical pipes
  • only very small access openings required
  • convenient supply hose package of 50 m/164 ft
  • optional meter counting incl. data loading
  • extremely high cutting force through powerful air motor
  • flexible operation through cable remote control

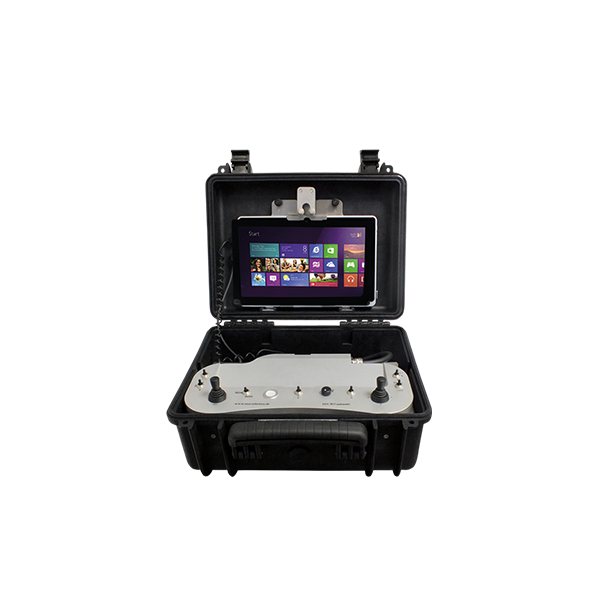

  • control unit MICRO automatic plus with case optional available
  • permanent monitoring of cutting operation due to color camera with air and water cleaning
  • great mobility convenience through compact stainless steel chassi
  • vehicle mounting kit optional available
  • damage prevention through automatic monitoring of internal pressure with signalling
  • accessory case with jobsite tools
  • different cutting tools can be installed
  • minimum downtimes in case of repair through operator-replaceable components or use of express service (see detailed description in the offer/order conditions)
