Tank Trailer

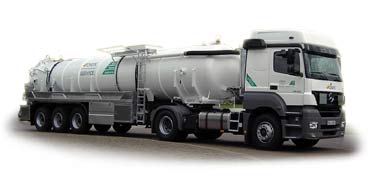

Tank Trailer Image

Areas of application
■ Cesspit emptying
■ Landfill water disposal
■ Portable toilet emptying
■ Transporting waste water
■ Cleaning gullies
■ Cleaning oil, fuel and grease separator/filter
■ Transporting dangerous goods (with optional ADR equipment)
■ Hydrodynamic pipe cleaning (with optional fitting of high-pressure rinsing system)

Features
■ Discharge by free flow
■ Discharge by pressurisation of vacuum pump
■ Discharge by draining piston (pneumatic or drag piston)
■ Multiple compartment system (optional)
■ Combined operation of suction and high-pressure rinsing (optional)
■ Fixed water compartment or variable water compartment

Semi-trailer underbody
■ 1 axle, 2 axle or 3 axle unit (BPW, SAF, DamlerChrysler etc.)
■ air or spring suspension
■ ABS
■ ASR
■ Drum or disk brakes
■ Telescopic support
■ for 3 axle unit: 1st axle can be lifted, 3rd axle steerable

Tanks
■ Sludge compartment size: according to customer demand
■ up to 30000 litre air volume
■ Sludge compartment format: cylindrical
■ Material: Steel or stainless steel
■ With manhole or fully opening closure hatch
■ Water compartment (optional) up to 5000 litre air volume, steel or stainless steel prefabricated in tank, in piston entrance or as water bags on the side
■ Contents display via float indicator with scale

Rear tank opening
■ To be opened as manhole for cleaning opening on lower tank edge or as closure hatch over the full cross-section
■ Torispherical head
■ Material: Steel or stainless steel
■ Closure hatch can be opened hydraulically upwards or by hand to the side
■ Central locking closure hatch can be operated pneumatically or by hand

Vacuum system
■ Vacuum pump according to customer demand (e.g.: CVS, Gardner-Denver-Wittig, Jurop, Samson etc.)
■ Quantity: 1 piece suction performance: up to 3000 m3/h
■ Mechanically or hydraulically powered
■ built underneath the semi-trailer or on the traction unit
■ Optionally with: Suction hose reel, boom, cassette or cassette trailer
■ Suction connectors for each compartment
(optionally joined in a manifold) (optional: upper suction connector)
■ Manholes on the top of the tank for each compartment
■ Transport reel for up to 80 m of DN 50 suction hose
■ Transport reel for up to 40 m of DN 80 suction hose

High pressure system (optional)

■ High pressure pump from 30-130 l/min rinsing capacity up to 200 bar pressure (e.g. makes: URACA, Speck, Pratissoli etc.)
■ Mechanical or hydraulic power
■ Small high-pressure rinsing reel operated hydraulically or by hand, designed for 60 m HP DN 13 hose, optionally up to 120 m
■ Contents level indicator with inspection glass

Equipment
■ Lower suction connector (optional: upper suction connector)
■ Discharge apron
■ Toolboxes or hose boxes on left and right side, in aluminium or stainless steel
■ Optional full cladding of aluminium or sheets of stainless steel, with upward opening flaps for the vacuum system under the seat
■ additional toolbox
■ Water level warning system
■ Residual water emptying system
■ Spraying gun/Wash lance
■ High-pressure/Sewer rinsing hoses
■ Refuse box
■ Halogen working lights
■ Central controls in stainless steel housing
■ Vice

Options
■ Manhole with access ladder and stand
■ Radio remote control
■ Reversing camera system
■ hydraulic winch
■ Hand washing system with cold water or cold/warm water
■ heated wardrobe
■ Full cladding
■ Billboards
■ Accessories
■ Nozzle set
■ etc.
