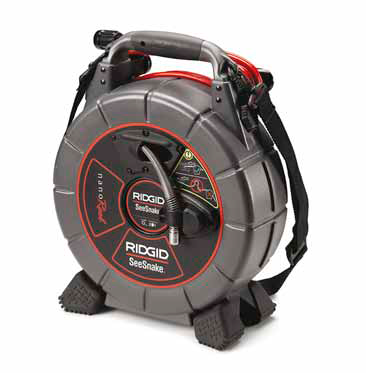

SeeSnake® nanoReel Industrial Inspection Camera System
¾” to 2″ (20 to 50 mm) Capacity up to 85′ (25 m)
Passes 90° bends in most 30 mm lines
The SeeSnake nanoReel opens up new possibilities in long run small diameter inspection needs.
Applications where only bore scopes could reach can now be inspected using the nanoReel.

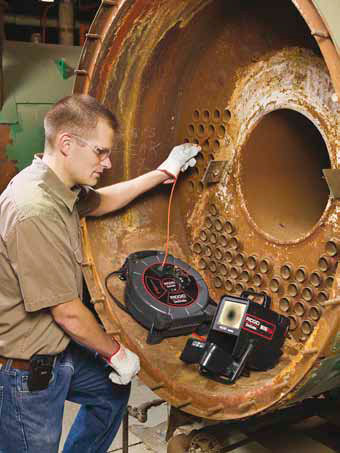

Boiler tubes, supply lines, sprinkler systems, and a wide array of specialty applications can all be
inspected using the new nanoReel.
• Small diameter and tight turn radius camera allows lines up to 85′ (25 m) to be inspected with
tight turns in 1″ (25 mm) lines. Can pass 90° bends from 30 mm onwards in many piping systems.
• Lightweight and compact unit allows for easy transport and efficient storage.
• Interchangeable drums let you change out the inner drum depending on the application.
Choose
from:
– L100/L100C – 1½” to 5″ (40 – 125 mm) lines with a stiffer push cable allowing you to inspect
lines up to 100′ (30 m).
– D30 and D65S – Small diameter with tight turns, 1½” to 4″ (40 – 100 mm) P-Traps, toilet traps, pool
lines up to 65′ (20 m).
– N85S – Ultra small diameter lines ¾” to 2″ (20 – 50 mm) with tight turns for specialized
applications.
Specifications
Camera Head………………………………………. 0.62″ (15,5 mm).
Cable Length……………………………………….. 85′ (25 m).
Cable Diameter……………………………………. 0.25″ (6,3 mm).
Line Capacity……………………………………….. ¾ to 2″ (20 – 50 mm).
Weight………………………………………………… 9.5 lbs. (4,1 kg).
Length………………………………………………… 13.25″ (33,7 cm).
Width…………………………………………………. 6.6″ (16,8 cm).
Height…………………………………………………. 17.5″ (44,5 cm).
Resolution…………………………………………… 510 x 496.
Ball Guide……………………………………………. 2 Included.
Sonde…………………………………………………. 512 Hz.
Counter……………………………………………….. NA.
